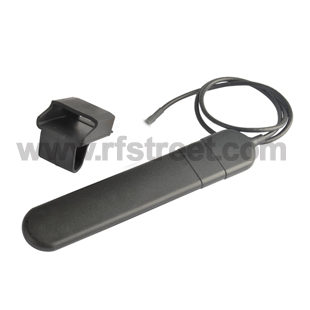

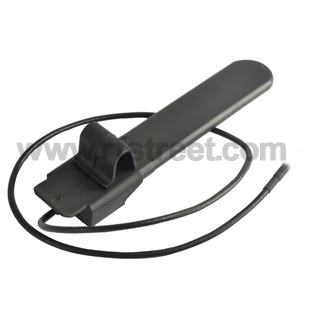

TS9 connector 850/1900/900/1800/2100/2170Mhz GSM/UMTS/HSPA/CDMA/3G Clip Antenn
Model: 3A3-1779-T04SP-130-46
Description
Product parameters:
| Product Type: | 3G Antennas | Input Impedance: | 50Ω |
| Frequency Range: | 1990-2170MHz | V.S.W.R.: | ≤1.5 |
| Gain: | 13dBi | Polarization: | Vertical |
| Connector: | TS9 | Radiation: | omnidirectional |
| Cable Length: | 46cm | Power: | 50W |
| Cable Type: | RG 174 | Operating Temperature: | -45 to +75℃ |
| Weight: | 81g | Storage Temperature: | -45 to +75℃ |
| Mounting: | Magnetic | Housing: | Black |
Frequencies: 850/1900/900/1800/2100/2170Mhz
GSM/GPRS/EDGE 850/900/1800/1900MHz
HSUPA/HSDPA/UMTS 2100MHz/900MHz
CDMA 800/1900 MHz
VSWR ≤1.5
Gain: 13dbi
Max Input power(W): 50
Input Impedance(Ω): 50
Polarization Type: Vertical
Radiation: omnidirectional
Cable Length(m): 46CM
Cable Type RG 174 default
Connector Type : TS9 or customized
SMA/SSMB/CRC9/TS9/MS147/FME//MC-Card..and so on.,
please give us notes if the connector is chosen !
Mounting: Magnetic
Housing: Black
Storage Temperature: -45'c to +75'c
Operating Temperature: -45'c to+75'c
