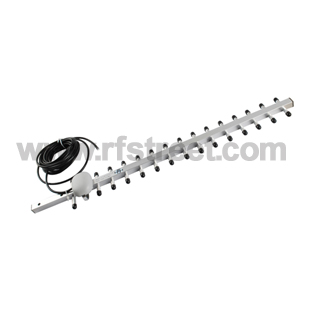

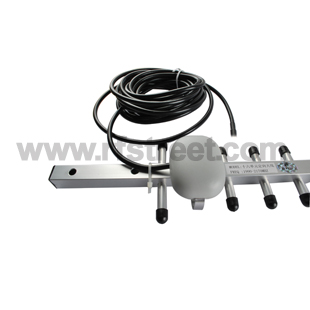

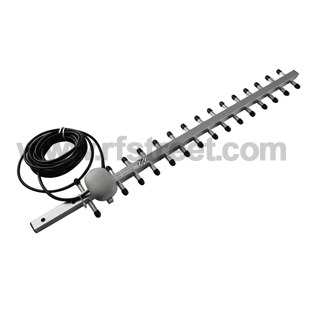

TS9 connector 1990-2170MHz 16DB 3G 2100Mhz Yagi Antenna For 3G wireless
Model: 3AY-2057-T04RA-160-500
Description
Product parameters:
| Product Type: | Yagi Antennas | Input Impedance: | 50Ω |
| Frequency Range: | 1990-2170MHz | V.S.W.R.: | ≤1.5 |
| Gain: | 16 | Polarization: | Vertical |
| Connector: | TS9 | Radiation: | omnidirectional |
| Cable Length: | 5m | Power: | 50W |
| Cable Type: | RG 174 | Operating Temperature: | -45 to +75℃ |
| Weight: | 0.3kg | Storage Temperature: | -45 to +75℃ |
| Mounting: | Magnetic | Housing: | Black |
Frequency Range(MHz)1990-2170MHz
VSWR ≤1.5
Gain: 16dbi
Max Input power(W): 50
Input Impedance(Ω): 50
Polarization Type: Vertical
Radiation: omnidirectional
Cable Length(m): 5M
Cable Type RG 174 default
Connector Type : TS9 or customized
SMA/SSMB/CRC9/TS9/MS147/FME//MC-Card..and so on.,
please give us notes if the connector is chosen !
Mounting: Magnetic
Housing: Black
Storage Temperature: -45'c to +75'c
Operating Temperature: -45'c to+75'c
The connectors / adapters we can offer you:
