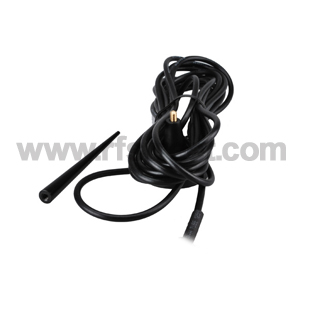

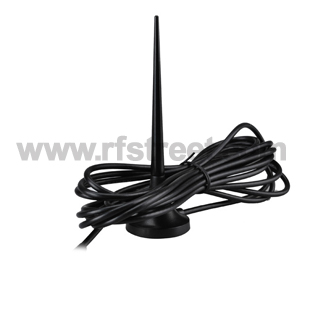

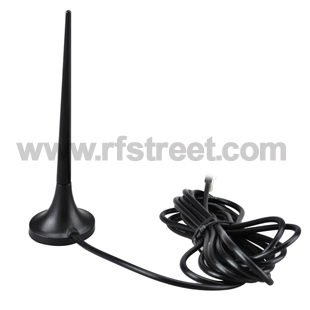

MS147 connector 850/1900/900/1800/2100Mhz GSM/UMTS/HSPA/CDMA/3G Antenna 3.5
Model: 3A1-1107-M12RA-035-300
Description
Product parameters:
| Product Type: | 3G Antennas | Input Impedance: | 50Ω |
| Frequency Range: | 850-960/1710-2170 | V.S.W.R.: | ≤1.5 |
| Gain: | 3.5dbi | Polarization: | Vertical |
| Connector: | MS147 | Radiation: | omnidirectional |
| Cable Length: | 3M | Power: | 50W |
| Cable Type: | RG 174 as default | Operating Temperature: | -45 to +75℃ |
| Weight: | 50g | Storage Temperature: | -45 to +75℃ |
| Mounting: | Magnetic | Housing: | Black |
Frequency Range(MHz)850-960/1710-2170
GSM/GPRS/EDGE 850/900/1800/1900MHz
HSUPA/HSDPA/UMTS 2100MHz/900MHz
CDMA 1900 MHz
VSWR ≤1.5
Gain: 3.5dbi
Max Input power(W): 50
Input Impedance(Ω): 50
Polarization Type: Vertical
Radiation: omnidirectional
Cable Length(m): 3M
Cable Type RG 174 default
Connector Type : MS147 or customized
SMA/SSMB/CRC9/TS9/MS147/FME//MC-Card..and so on.,
please give us notes if the connector is chosen !
Mounting: Magnetic
Housing: Black
Storage Temperature: -45'c to +75'c
Operating Temperature: -45'c to+75'c
The connectors / adapters we can offer you:
