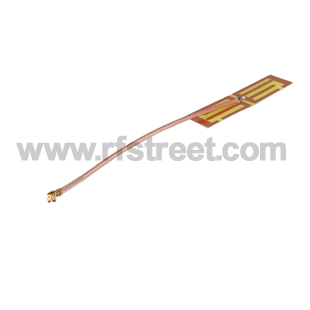

4G Internal Antenna 5dbi 700-2600Mhz with U.FL Jack connector RG178 10cm
Model: 4A3-2711-U04RJ-050-10
Description
Product parameters:
| Product Type: | 4G Antennas | Input Impedance: | 50Ω |
| Frequency Range: | 698-960/1710-2170/2500-2700 | V.S.W.R.: | ≤ 2.0 |
| Gain: | 5dBi | Polarization: | Vertical |
| Connector: | U.FL | Power: | 50 |
| Length(mm): | 10cm | Housing: | Black |
| Cable Type: | RG178 | Storage Temperature: | -30°C to+75°C |

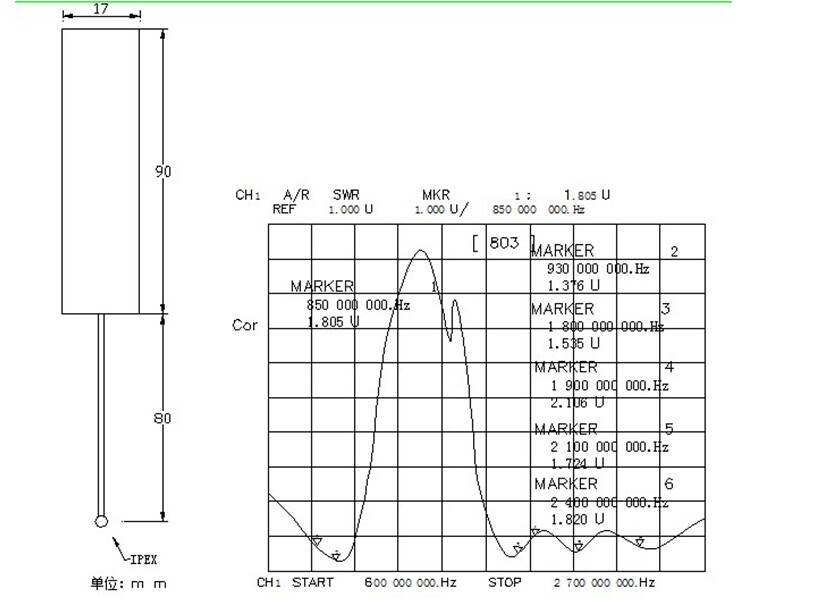

Specifications:
Frequency(MHz):698-960/1710-2170/2500-2700
VSWR ≤ 2.0
Gain(dBi):5
Max Input power(W):50
Input Impedance(Ω):50
Polarization:Vertical
Cable Type:RG178
Cable Length:10cm
weight:7g
Connector:U.FL(default)/FME/TNC etc.
Storage Temperature:-30°C to+75°C
Operating Temperature:-30°C to+75°C
