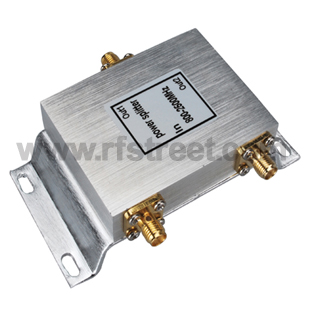

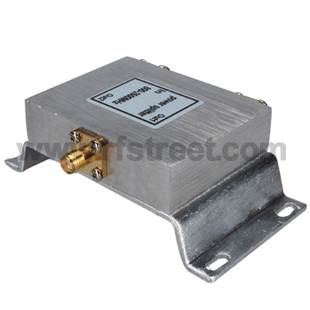

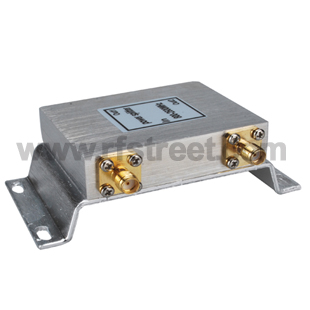

800-2500MHz 2-way Power Divider SMA female connector
Model: PD-2104
Description
Product parameters:
800-2500MHz 2-way Power Divider SMA female connector
Using microstrip structures, in-band flatness is good, high isolation, insertion loss is small, standing wave good performance, easy installation, for cellular mobile communications and spread spectrum communications in indoor distribution system.
ELECTRICAL SPECIFICATIONS:
type: 2-way Power Divider
Frequency: 800 ~ 2500MHz
Insertion loss(distribution ratio)-db:<=3.5DB
Isolation(dB): ≤27
Nominal Impedance(Ω): 50
VSWR :1:1.4
Max. Power(MAX)(W) :50
connector :SMA female
Mechanical Characteristics:
Environment temperature -℃ :-30+60
Relative humidity -% :5~95
Size -mm ：65.4mmX90mmx17mm
Weight：106g
PS. Power splitter box body surface polishing
Frequency: 800 ~ 2500MHz
Insertion loss(distribution ratio)-db:<=3.5DB
Isolation(dB): ≤27
Nominal Impedance(Ω): 50
VSWR :1:1.4
Max. Power(MAX)(W) :50
connector :SMA female
Relative humidity -% :5~95
Size -mm ：65.4mmX90mmx17mm
Weight：106g
PS. Power splitter box body surface polishing
