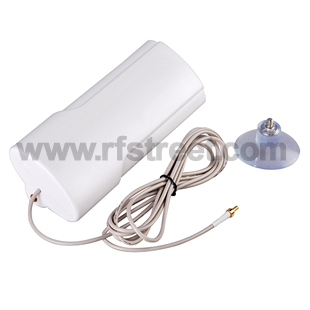

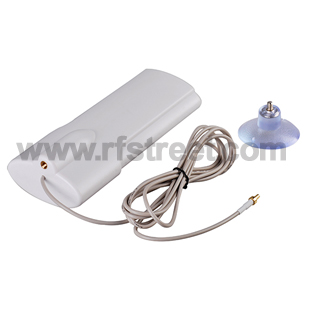

698-960/1710-2690MHZ 4G 25dBi CRC9 Antenna for HUAWEI equipment
Model: 4A1-2765-C01SP-250-200
Description
Product parameters:
| Product Type: | 4G Antennas | Input Impedance: | 50 Ohm |
| Gain: | 25dBi | VSWR: | ≤2.5 |
| Polarization Type: | Vertical | Maximum Imput Power: | 10W |
| Cable length: | 2m | Install the Way: | Adsorption |
| Dimension: | 207mm * 70mm * 30mm | Weight: | 177g |
Main Technical Specifications:
1.Frequency Range：791~821MHZ/832~862MHz/1710~1785MHz/1805~1880MHz/2500~2570MHz/2620~2690MHz
2.VSWR:≤2.5
3.Gain:25dBi
4.Polarization Type:Vertical
5.Maximum Imput Power:10W
6.Input Impedance:50 Ohms nominal

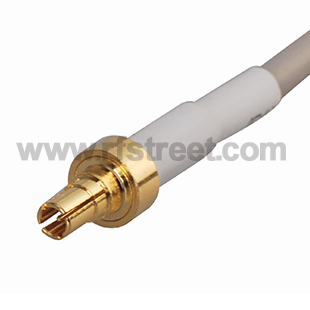

7.Connector Type:RP-SMA male/SMA male/FME femal/TS9/N male/CRC9(defaut) or customer appoint
8.Sucker:ø5cm
9.Cable length: 2m
10.Install the Way:Adsorption
11.Dimensions:207mm * 70mm * 30mm
12.Weight:177g
